Exploring Foundation Types in Ontario: A Comprehensive Guide
Introduction
In the vast and varied landscape of Ontario, choosing the right foundation for residential, commercial, or industrial buildings is not just about personal preference—it’s about survival. (Well, maybe not survival, but you’ll definitely want a solid foundation when the frost heaves start flexing their muscles.)
Ontario’s diverse topography, from the flat terrains of the Niagara region to the rocky outcrops of Northern Ontario, demands a thoughtful approach to foundation construction. This article dives into the different types of foundations commonly used in Ontario, exploring their advantages, challenges, and suitability across different regions of the province.
The Importance of Foundations in Ontario
Foundations are the unsung heroes of any structure, quietly shouldering the weight of your home while keeping out the cold, damp, and curious critters. In Ontario, where winters can be harsh and soil conditions vary widely, selecting the right foundation type is pivotal for ensuring the longevity, stability, and energy efficiency of structures.

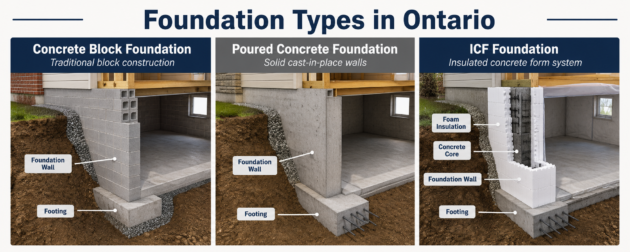

1. Poured Concrete Foundations 🏗️
Description:
Poured concrete foundations are one of the most common types in Ontario. They involve pouring liquid concrete into forms that outline the desired shape of the foundation.
Advantages:
- Durability: Can withstand Ontario’s weather mood swings, from frigid winters to humid summers.
- Customization: Can be poured into any shape, making it ideal for complex designs or uneven ground.
- Waterproofing: With proper sealing, they resist moisture—crucial given Ontario’s fluctuating water table.
Challenges:
- Cost: More expensive due to labor and materials.
- Curing Time: Requires significant time to cure, which can delay construction.
Regional Suitability:
Poured concrete is universally used across Ontario, particularly in urban areas like Toronto and Ottawa, where stable soil and limited construction space make this type a go-to choice.
2. Concrete Block Foundations 🧱
Description:
Concrete block foundations are built by stacking concrete blocks (CMUs) and filling them with concrete, often reinforced with rebar.
Advantages:
- Cost-Effective: Generally cheaper than poured concrete, especially for smaller projects.
- Ease of Construction: Blocks can be laid quickly, speeding up the build.
- Accessibility: Materials are widely available throughout Ontario.
Challenges:
- Joint Integrity: Mortar joints require attention to prevent leaks, especially in areas with freeze-thaw cycles.
- Strength: While strong, they don’t match the monolithic strength of poured concrete without reinforcement.
Regional Suitability:
Popular in rural areas or smaller towns where budget constraints are significant, such as parts of Eastern Ontario.
3. Insulated Concrete Forms (ICFs) 🌿
Description:
ICFs involve stacking blocks or panels made from insulation material, which are then filled with concrete to create an integrated, insulated wall.
Advantages:
- Energy Efficiency: Superior insulation reduces heating and cooling costs—perfect for Ontario’s climate.
- Durability: Combines concrete’s strength with insulation, making it suitable for all seasons.
- Soundproofing: Provides a quieter indoor environment.
Challenges:
- Initial Cost: Higher upfront cost, though long-term energy savings can offset this.
- Skill Requirement: Requires specialized installation knowledge.
Regional Suitability:
Gaining popularity across Ontario, especially in energy-conscious communities like Kitchener-Waterloo and Barrie.
4. Wood Foundations 🌲
Description:
Wood foundations use pressure-treated wood, often with concrete footings or slabs.
Advantages:
- Cost: Generally cheaper than concrete options.
- Environmental Impact: Eco-friendly if sustainably sourced.
- Flexibility: Easy to modify or expand.
Challenges:
- Durability: Less resilient than concrete, especially in high-moisture areas.
- Fire Risk: Greater vulnerability compared to masonry.
Regional Suitability:
More common in rural areas or northern regions where wood is abundant and affordable.
5. Steel Foundations 🔩
Description:
Steel foundations use steel sheets or beams, often paired with concrete for extra support.
Advantages:
- Strength: High strength-to-weight ratio, ideal for heavy structures.
- Speed: Quick installation thanks to prefabrication.
- Durability: Resistant to many forms of degradation if properly treated.
Challenges:
- Cost: Higher expense, especially for residential use.
- Corrosion: Needs protective measures against Ontario’s humidity.
Regional Suitability:
Common in industrial or large commercial projects, particularly around manufacturing hubs like Hamilton and Mississauga.
6. Raft Foundations 🛶
Description:
A raft foundation is a large, thick concrete slab that supports the entire building, ideal for soil with low bearing capacity.
Advantages:
- Load Distribution: Spreads building weight evenly.
- Flood Resistance: Can be designed to reduce flood risks—useful near the Great Lakes.
Challenges:
- Expense: High material costs.
- Design Complexity: Requires precise engineering.
Regional Suitability:
Best for areas with unpredictable soil, such as parts of Southern Ontario near water bodies.
7. Pile Foundations ⚙️
Description:
Pile foundations use long, slender columns driven deep into the ground to transfer loads to stable soil or bedrock.
Advantages:
- Soft Soil Suitability: Ideal for weak upper soil layers.
- Flexibility: Suitable where traditional foundations fall short.
Challenges:
- Cost: Requires specialized equipment.
- Noise and Vibration: Disruptive in urban settings.
Regional Suitability:
Common in Northern Ontario and areas with significant geological challenges, like Ottawa.
8. Slab-on-Grade Foundations 🚪
Description:
A slab-on-grade foundation is a single, thick concrete slab poured directly on the ground.
Advantages:
- Cost-Effective: Less material and labor.
- Energy Efficiency: Acts as a thermal mass, retaining heat.
- Accessibility: Perfect for single-story homes.
Challenges:
- Frost Heave Risk: Requires proper insulation to prevent damage.
- Limited Crawlspace: No room for underfloor utilities.
Regional Suitability:
Popular in Southern Ontario, where frost depth is manageable with proper insulation.
9. Stone or Rubble Foundations 🪨
Description:
An old-school method using stacked stone or rubble, sometimes with mortar.
Advantages:
- Aesthetic Appeal: Rustic, historical charm.
- Eco-Friendly: Uses natural, often local materials.
Challenges:
- Water Seepage: Requires modern waterproofing.
- Structural Integrity: Needs reinforcement over time.
Regional Suitability:
Found in historic areas like Prince Edward County or older farmhouses throughout rural Ontario.
Conclusion 🎬
Choosing the right foundation in Ontario isn’t just about concrete and rebar—it’s about navigating the province’s unique blend of climate, soil, and building codes. From frost-resistant poured concrete in the north to flood-resistant raft foundations near the Great Lakes, each option offers distinct advantages.
Whether you’re building a cozy cottage in Muskoka or a modern bungalow in Barrie, understanding your foundation options ensures a sturdy start. After all, a house is only as strong as what it stands on. And in Ontario, that strength is tested by everything from spring thaws to curious raccoons. 🦝
