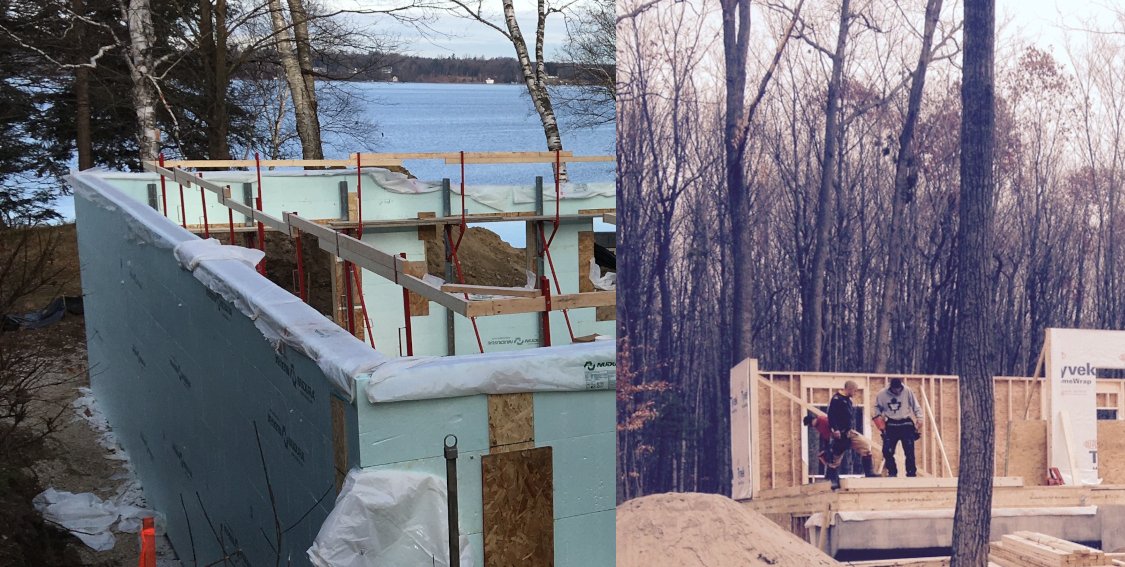

ICF vs Wood Frame Construction
ICF vs Wood Frame Construction: Which is truly better?
We finally have scientific proof! Who wins in the ultimate battle: ICF vs Wood Frame Construction? Now you can see for yourself. Run this interactive simulation—just press Start—and watch how temperature and heat flux evolve over a 72-hour period as exterior temperatures swing from -5°C to +5°C while the interior stays perfectly stable. The results might surprise you!
Wall Heat Transfer Simulation
The way buildings interact with their environment—particularly how they manage heat transfer—is a critical factor in energy efficiency, occupant comfort, and long-term sustainability. The interactive simulation presented here models the thermal behavior of two common wall systems—wood-framed walls and insulated concrete form (ICF) walls—over a 72-hour period. Let’s unpack what this simulation demonstrates and why it matters.
What Does This Simulation Model?
The simulation uses a simplified resistance-capacitance (RC) network to predict how heat flows through different wall assemblies. Here’s the core setup:
- Wood-framed wall: R-value = 14°C/W (split evenly between interior/exterior) and thermal mass (C) = 240 J/°C.
- ICF wall: R-value = 22°C/W (higher insulation) and thermal mass = 1,714 J/°C (significantly greater than wood).
- Exterior conditions: Simulates a daily temperature cycle between -5°C (at 2 AM) and +5°C (at 2 PM).
- Interior temperature: Fixed at 22°C, mimicking a climate-controlled space.
The simulation runs in real-time, updating hourly data points to show how each wall responds to changing outdoor temperatures.
Key Insights from the Graphs
Two charts drive the analysis:
1. Temperature Chart
- Exterior Temperature: The gray sinusoidal curve shows the outdoor temperature cycling between extremes.
- Wood Wall (Brown Line): Follows exterior temperature fluctuations closely but lags slightly due to its moderate thermal mass.
- ICF Wall (Blue Line): Remains far more stable, thanks to its high thermal mass and insulation.
What This Proves:
- Thermal mass acts as a “thermal battery”: The ICF wall’s concrete core absorbs and releases heat slowly, buffering against rapid temperature swings.
- R-value matters for steady-state performance: The ICF’s higher R-value reduces heat flow even when temperatures stabilize.
2. Heat Flux Chart
- Wood Wall Heat Flux (Brown Line): Shows large swings in heat transfer (W/m²) as the wall struggles to maintain equilibrium.
- ICF Wall Heat Flux (Blue Line): Remains relatively flat, indicating consistent thermal performance.
What This Proves:
- Lower heat flux = energy savings: The ICF wall’s minimal heat flux means less energy is needed to maintain the indoor temperature.
- Wood walls require more HVAC effort: Frequent heat flux spikes imply higher heating/cooling demands.
Why This Matters in Real-World Building Design
- Energy Efficiency:
- ICF walls reduce heating/cooling loads by up to 50% compared to wood-framed walls, as shown by the steadier heat flux.
- This translates to lower utility bills and smaller carbon footprints.
- Comfort:
- The ICF’s thermal mass prevents indoor temperature swings, avoiding the “cold wall” effect common in poorly insulated homes.
- Climate Resilience:
- In extreme climates, materials with high thermal mass (like ICF) protect against both heat waves and cold snaps.
- Cost-Benefit Tradeoffs:
- While ICF has higher upfront costs, the simulation quantifies long-term energy savings, aiding informed decision-making.
The Bigger Picture
This simulation isn’t just a theoretical exercise—it mirrors real-world building physics. By modeling hourly temperature and heat flux data, it provides actionable insights:
- Design Optimization: Architects can compare materials to balance cost, energy efficiency, and comfort.
- Policy Implications: Regulators might incentivize high-performance walls like ICF to meet climate goals.
- Consumer Awareness: Homeowners can visualize how wall choices impact their energy use and comfort.
Conclusion
The graphs prove a critical principle: insulation (R-value) and thermal mass work together to determine a wall’s performance. While insulation resists heat flow, thermal mass delays and dampens temperature changes. ICF walls excel at both, making them superior for energy-efficient design. Tools like this simulation empower stakeholders to move beyond rules of thumb and make data-driven decisions for sustainable building practices.
By visualizing heat transfer dynamics, we gain a deeper appreciation for the hidden science in our walls—and how smart design choices can create more resilient, efficient spaces.
