Solar Radiant Floor Heating – What You Need To Know

Solar Radiant Floor Heating

Solar Radiant Floor Heating

Solar hot water heating systems are compatible with radiant floor systems for a multitude of reasons:

1. The radiant floor system requires water temperatures in the same range that the solar system can generate.

2. Hydronic baseboards and fan coil systems, by comparison, require water temperatures that are much higher than most solar systems can provide.

3. Both the solar system and the radiant floor systems are environmentally friendly due to the saving they provide in the consumption of fossil fuels.

4. The solar system can directly offset a portion of the fuel required to heat the water for the radiant floor system by at least 30% when compared to conventional forced air systems.

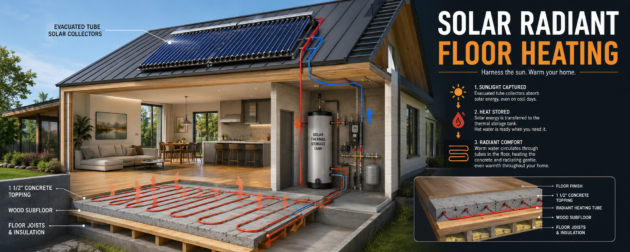

Solar Radiant Floor Heating System Components:

The solar components include:

1) Solar collectors; either flat plate copper tube or evacuated tube design;

2) A storage tank with multiple internal heat exchangers that allow the solar system to put heat into the reservoir and others that allow the radiant floor system to extract it;

3) A control package, which involves sensors to monitor the temperature at the collectors and in the storage tank, to ensure the system transfers the maximum amount of heat from the collectors to the tank;

4) A backup heat source to carry the heating load when the solar system is not able to meet demand;

The radiant floor system includes:

5) Radiant floor tubing, typically 1/2 inch PEX plastic pipe which is built into the floor;

6) A distribution manifold, usually one per floor, which allows for separate zones in individual rooms;

7) A control package, including thermostats, zone valves, and circulation pumps.

Clip Art Graphic of a Yellow Residential House Cartoon Character

Solar Energy And Radiant Floor Heating

A solar/radiant floor combination system can be installed in any type of building or any type of construction, including slab on grade, suspended concrete slab or wood frame construction.

Installation of the radiant floor system in a wood frame building usually requires that a layer of lightweight thermal mass material be used to cover the tubing (such as Concrete, Gypspan, Gypcrete, etc.).

Solar heating system and radiant floor system can be retrofitted in existing buildings, although they are more easily installed during new construction.

In both installations, the solar system requires a south-facing roof or wall for the solar collectors.

  • Most systems require two 4×8′ panels, with more required as the load increases.
  • The panels cannot be shaded by trees or other buildings.
  • The storage tank also requires space in the mechanical room.
  • The collectors must be connected to the solar storage tank or heat exchanger by copper supply and return lines.
  • Finding a route for these lines in a home with a finished basement can be difficult.
  • The installation of a radiant floor system involves an integration of the tubing into the floor structure of all areas to be serviced by the system.

In new construction, the building design can be adjusted to accommodate.

The design of some existing buildings does not allow this type of installation.

The main heating load is during winter months, but the solar radiant floor heating system must be sized so that high output levels during summer months do not create an excess of hot water.

Designing a solar system based on winter output will produce a surplus in summer, and consideration should be given to directing this excess supply to domestic hot water consumption or a swimming pool.

Clip Art Graphic of a Yellow Residential House Cartoon Character

The cost of a typical solar system with two flat plate collectors, storage tank, and control package, these days vary between $5,500.00 – $7,500.00.

Installation costs will differentiate, depending on the particular case and whether the installation is new or retrofit, but the range is between $1,200.00 to $2,000.00.

The materials package for a radiant floor system includes the PEX tubing, distribution manifolds, circulation pumps, and controls,  will cost $2.50 to $3.50 per square foot of a heated area.

Installations on wood frame construction require the application of a thermal mass cover, at a cost of $3 per square foot.

The cost of installing the radiant floor system will vary depending on the type of floor construction.

Some portion of both the solar and the radiant floor system can be installed by the homeowner, particularly the basic plumbing and roof work.

The company that supplies materials can provide a pipe layout to show the location of loops and pipe runs.

A hydronic radiant floor system presents a number of advantages when used with cement slab construction. The first is the increased comfort level for occupants since the floor is heated surface.

The second is the reduction in heating costs.

Installation of the radiant floor system in a cement slab is accomplished in two steps. The first is the installation of the radiant floor piping, where the manifolds are installed in the wall cavity of an interior wall, with a flash mounted access door.

The heating system design adjusts the spacing of the piping according to the heat loss in each area of the building.

The pipe loops are a continuous run of tubing, so there are no joints in the slab itself. They start at the supply manifold, cover a portion of the floor surface and then return to the same point for connection to the return manifold.

The second step is to place the concrete. The cement crew must be careful not to rupture the piping by striking it with a shovel or other tool.

The completion of the radiant floor heating system requires the connection of the manifolds to the heat source. In most installations, the supply and return lines are enclosed in the walls. If the building has a riser design, these lines will have to be integrated into the slab as well.
