RTK Positioning on a Home Build: Foundation, Excavation & Grading

What RTK Actually Changes About On-Site Positioning

Standalone GNSS places a receiver in the right general area, but house construction needs a tighter relationship between the digital plan and the ground. RTK uses carrier phase observations plus correction data from a reference station or network. The rover resolves those corrections in real time and reports a fixed position at centimetre scale.

For a builder, the bigger change is repeatability. The crew returns to the same coordinate during several stages and compares field position with design. That supports layout, excavation, foundation checks, rough grading, and recorded as-built points.

In Canada, the coordinate frame matters as much as receiver status. Natural Resources Canada defines the Canadian Spatial Reference System as the national framework for latitude, longitude, and height. NAD83(CSRS) is the geometric reference adopted in most jurisdictions, while CGVD2013 is the national height datum. A rover set to the wrong datum or vertical model still returns a precise number — but it is the wrong number for the project.

Turning the Approved Site Plan Into Points on the Ground

Start with control and the reference system

The approved site plan has to enter the field in the same coordinate system used by the rover. Before staking a corner, the crew needs the drawing basis, project units, vertical datum, and site benchmark. Imported CAD or machine files also need to be checked against known geometry.

A sound setup starts with four items:

• Confirm the plan coordinate system and drawing units
• Confirm the benchmark or control point used for elevations
• Load the correct points, lines, or surface into the controller
• Measure at least one known point before setting new points

Stake the geometry that controls the build

Focus on building corners, footing offsets, excavation limits, garage transitions, service entries, and grade breaks. Offset stakes deserve special attention because excavation removes many original marks.

This is especially relevant in Ontario municipalities where building permit applications require a site plan showing the proposed structure’s location relative to lot lines, setbacks, and existing features. RTK gives the crew a fast way to verify that the staked footprint actually matches the approved drawing before a shovel goes in the ground.

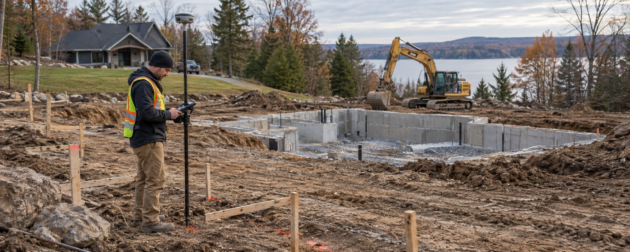

Checking Excavation and Foundation Location

Excavation is the first stage where a position error becomes expensive. RTK lets the crew confirm that the cut is centred on the planned house, that excavation leaves room for forms and drainage work, and that the base elevation matches the design.

Use checks at three moments:

• Before excavation: verify building corners and outside offsets
• After bulk excavation: check cut limits and formation elevation
• Before footing or wall concrete: recheck offsets, corners, and key elevations

A foundation placed outside the approved setbacks is not just an engineering problem — it can trigger a stop-work order and force expensive remediation before the municipality will continue inspections. Understanding Ontario’s building rules around setbacks and lot coverage before excavation starts is the best way to avoid that outcome.

Keeping Track of Elevations During Site Work

Horizontal position gets most of the attention, but vertical control drives excavation depth, top of footing, foundation wall height, slab preparation, driveway transitions, and final grade.

GNSS receivers natively measure ellipsoidal height. Construction drawings generally use orthometric elevations tied to a vertical datum or project benchmark. The field controller therefore needs the correct geoid model or site transformation. NRCan identifies CGVD2013 as Canada’s current national height reference and provides tools for converting GNSS heights into orthometric elevations.

For each critical check, record the point name, solution status, antenna height, coordinate system, and measured value. This documentation matters if a discrepancy surfaces later during inspections.

Where RTK Helps With Lot Grading and Drainage

Grading ties the foundation, garage, driveway, swales, and neighbouring elevations into one surface. RTK speeds up spot checks and shows cut and fill when the design surface is loaded.

For Ontario projects, the approval process is municipal, so the field crew needs the approved grading plan rather than a generic slope rule. Our overview of Ontario lot grading and drainage requirements explains how proposed elevations, swales, finished grade, and final certification fit together. RTK supports that plan by showing where the ground sits relative to specified elevations during construction.

Useful checks during grading include:

• Top of foundation against proposed finished grade
• Swale high and low points before landscaping hides the subgrade
• Driveway and garage transitions before granular material is finalized
• Rear and side yard spot elevations before topsoil placement

RTK Correction Networks vs. Setting Up Your Own Base Station

Network RTK

With network RTK, the rover connects to an NTRIP caster through mobile data, sends its approximate position, and receives RTCM correction messages. The service handles reference station infrastructure, station coordinates, and data distribution. A crew moves from lot to lot with one rover rather than transporting a temporary base. The field requirements are compatible NTRIP equipment, service coverage, mobile data, and a verified FIX solution.

Your own base station

A local base puts the reference receiver under the contractor’s control. The crew needs a stable location, trustworthy coordinates, power, security, and a radio or internet path to the rover. If the base coordinate is wrong, every rover point inherits that error.

Network RTK reduces hardware and setup work, while a local base gives direct control over the reference source. Both still require verified project control.

Where RTK Stops and a Licensed Surveyor Is Still Required

RTK is a positioning method, not a licence to establish legal boundaries. Ontario’s Surveyors Act defines cadastral surveying to include measuring land to determine, locate, define, establish or re-establish a boundary. The Act restricts that work to licensed practitioners, or staff acting under their direction and supervision.

That boundary matters during a home build. A builder uses RTK for construction layout when the design and control come from authorized project information. The builder should not use a rover to decide where an uncertain property line belongs, recreate a missing legal corner, or resolve a boundary conflict.

Before starting any build, confirm which surveys and certifications your municipality requires at each stage. This is part of the broader Ontario building permit process that trips up many first-time custom home builders.

What Builders Should Check Before Depending on RTK

RTK performs well when the whole positioning chain is correct. A green FIX indicator is only one part of that chain. Receiver setup, corrections, coordinate settings, antenna height, and field verification deserve the same attention.

Before production work starts:

• Confirm correction coverage, mobile data, and clear sky view at the actual lot
• Confirm the rover accepts NTRIP and the supplied correction format
• Confirm the project datum, projection, units, and vertical model
• Require RTK FIX for critical layout — reject FLOAT for foundation control
• Check a known point at the start and after any loss of initialization
• Save measured points and field notes so layout decisions remain traceable

These checks matter because NTRIP connectivity alone does not establish a reliable position. The receiver still needs usable satellite geometry, a correct correction stream, and project settings that match the design data.

Builders get the best value from RTK when they treat it as a control system across the build, not a one-time staking tool. The same rover checks the footprint, excavation, footing offsets, wall location, rough grades, and final surfaces, exposing discrepancies early. RTK delivers speed only after the reference system, control, and verification process are right. That discipline keeps field decisions tied to verified geometry and reliable control.
