Septic System Design Ontario: Drawings, Calculations and Permit Package

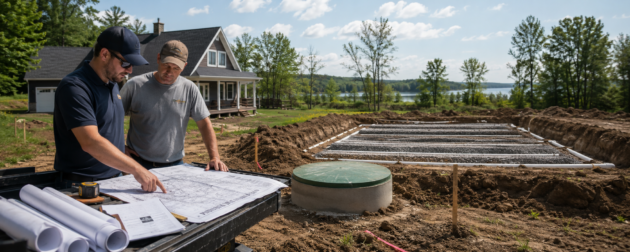

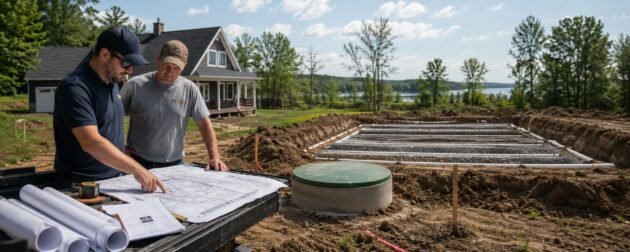

A septic design turns the proposed building, site and soil into a system that can be reviewed, priced, constructed and inspected. It is not a generic sketch. The calculations, site plan, elevations, tank, bed, distribution and construction cross-section must all describe the same property and the same proposed system.

TL;DR: Finalize the proposed building, evaluate the actual system area, calculate the daily design sewage flow, document the soil and T-time, coordinate every setback and elevation, select the appropriate system type and produce one consistent package for permit review and construction. Start with the Ontario Septic Systems Hub, then use the Septic Permit Ontario guide to organize the submission process.

Build My Septic Package — $99.99 Septic Permit Guide

A septic design has three jobs

Prove the system fits

Show that the tank, bed, distribution, buildings, wells, water, property limits, grades and access can coexist on the property.

Prove the system is sized

Calculate the daily sewage flow, tank capacity, loading, bed dimensions, pumps and treatment needed for the proposed building.

Tell the installer what to build

Provide dimensions, elevations, construction layers, materials and details that can be followed and inspected in the field.

A permit sketch is not enough when it leaves field decisions unresolved. If the installer must guess the elevation, material, pipe spacing or actual bed dimensions, the design package is incomplete.

What the designer needs before starting

Design input	What must be known	Why it changes the system
Proposed building	Use, bedrooms, floor area, plumbing fixtures, additional units and future scope.	Determines the daily design sewage flow and tank and bed sizing.
Property information	Legal boundaries, easements, survey, neighbouring features and planning constraints.	Defines where the system may legally and practically fit.
Site layout	House, garage, driveway, well, water, utilities, outdoor spaces and construction access.	Prevents the septic system from colliding with the rest of the project.
Topography and elevations	Existing grade, proposed grade, building sewer, foundation elevation and system area.	Determines whether gravity works or pumping and raised construction are required.
Soil profile	Soil layers, T-time, groundwater, bedrock, fill and limiting conditions.	Controls loading, treatment depth, bed type, footprint and imported material.
Existing-system information	Permit, tank, bed, age, condition and location for alteration or replacement projects. A proper septic inspection is especially important when evaluating an existing system.	Defines what can be reused, altered, abandoned or replaced, particularly when buying a house with a septic system.

What belongs in the design package

Application forms are only one part of the package. Review the septic permit application PDF hosted by BuildersOntario, then confirm the current forms, schedules, drawings and fees required by the approval authority for the property.

Choose the right tool for the stage you are at

Build the Part 8 package with the septic software, organize the larger approval process with the Permit Bible and investigate the property before purchase with the Lot-Buying Bible.

Primary design tool

Ontario Septic Designer

Calculate, check, draw, price and print.

$99.99per project · 90-day access

Turn the building, soil and site information into organized calculations, setback checks, layout drawings, materials and a printable Part 8 package.

Daily design flow and tank calculations
Soil, T-time and setback checks
Trench, raised-bed and filter-bed planning
Site-plan overlay and system cross-section
Material takeoff, estimate and printable PDF

Build My Septic Package — $99.99

Planning and documentation tool. The local approval authority makes the permit decision.

Whole permit process

Ontario Building Permit Bible

Consultants, drawings, fees and inspections in order.

$29.99one-time purchase

A builder’s roadmap for moving a home, addition, garden suite, garage or major renovation through the Ontario building-permit process.

Complete-application checklist
Who to hire and in what order
Permit, development and soft-cost planning
Inspection preparation and common failures

Get the Permit Bible — $29.99

Stripe checkout

Before design begins

Ontario Lot-Buying Bible

Prove the property works before paying for final plans.

$29.99one-time purchase

A practical rural-property guide covering septic, well, zoning, access, hydro, grading, site costs, financing and the questions that should be answered before purchase.

Septic and well due-diligence questions
Rural servicing and site-cost planner
Hard-cost, soft-cost and contingency worksheet
Printable go/no-go lot scorecard

Get the Lot-Buying Bible — $29.99

Stripe checkout

Buying the lot and then pulling the permit?

Get both the Ontario Lot-Buying Bible and Ontario Building Permit Bible in one discounted package.

~~$59.98~~Both for $49.99

Get Both Bibles

Daily design sewage flow comes before tank and bed sizing

The design flow is based on the proposed building and the applicable Code method—not the number of people currently living there or promises to use less water. The designer must establish the correct building information before selecting a tank or laying out a bed. Adding a second dwelling can change the total flow and layout, so review the garden suite septic requirements before freezing the house and site plans.

Residential inputs can include

Number of bedrooms
Finished floor area
Plumbing fixtures
Additional residential units
Other building-specific flow triggers

Non-residential inputs can include

Type of facility or use
Occupancy or seats
Employees, patrons or users
Process and food-service flows
Peak and combined design conditions

Do not freeze the septic design while the house keeps changing. A bedroom, floor-area, plumbing or building-location change can affect the calculations, tank, bed, layout and permit package.

Soil, T-time and limiting conditions

The system is designed for the actual soil and site—not a colour from a regional map or a neighbour’s experience. Test holes and site evaluation must identify the soil profile and conditions that control treatment, loading and vertical separation. Before buying vacant land, use the lot septic feasibility guide and the septic and well reality check to identify conflicts early.

T-time

The percolation value used with design flow and system type to establish loading and dimensions.

Groundwater and bedrock

Limiting elevations can force raised construction, imported material or another approved approach.

Soil consistency

Variable fill, clay, sand, disturbed soil or transitions may require more investigation and a conservative layout.

Test the proposed bed area. A favourable hole in a distant corner does not prove that the system can be built where the house, well, driveway and property layout require it.

Selecting the system type

Design approach	When it may fit	What the design must resolve
Conventional gravity	Favourable soil, usable area and elevations allow straightforward flow and dispersal.	Tank, bed loading, distribution, pipe layout, clearances and final grade.
Raised system	Groundwater, bedrock or soil conditions require imported material and raised treatment elevation.	Fill specifications, slopes, elevations, stability, distribution and surface drainage.
Pressure distribution	Controlled, even dosing is needed for the selected design and site.	Pump chamber, dose volume, floats, alarm, network hydraulics and commissioning.
Filter bed	The Code-permitted design and property conditions support a compact or defined treatment bed.	Loading area, filter media, distribution, perimeter, cover and elevation details.
Advanced treatment	Approved treatment equipment is appropriate for a constrained or performance-based design.	Certification, service requirements, alarms, sampling, dispersal design and ongoing maintenance.

The most compact system is not automatically the best system. First understand how septic systems work. Then compare construction cost, electricity, service agreements, replacement parts, owner responsibility and the long-term operation and maintenance requirements.

Already have calculations or drawings?

Send the project location and what has been prepared. We review the request first, scope any paid design-package review and send a secure payment link before billable work begins.

Who can prepare the design?

Ontario’s Building Code Act establishes qualification requirements for design work submitted with permit applications. The current Code also recognizes exemptions in defined circumstances, including certain owner-designed systems owned by the person preparing the design.

Qualified design service

A person or firm offering design services to the public must meet the applicable qualification and registration requirements for the work.

Owner-designed system

A registered property owner may be able to prepare a design for a sewage system they own, but should confirm the exemption, forms and local acceptance before starting.

Permit applicant does not automatically mean designer. Putting the owner’s name on the application does not convert unqualified paid design work into an owner-designed package.

Read the Owner-Builder Guide Start the Septic Designer

How much does septic design cost in Ontario?

Design and permit preparation generally costs $2,000–$8,000, depending on complexity. The scope can include site evaluation, calculations, drawings, application documents, revisions and construction support, but every proposal should identify exactly what is included.

Design service	Planning allowance	What changes the price
Basic residential design package	$2,000–$5,000	Available survey, straightforward building, conventional system and limited revisions.
Complex or constrained design	$5,000–$8,000+	Waterfront, difficult soil, raised or pumped systems, advanced treatment, grading, multiple buildings or extensive authority comments.
Owner-builder software package	$99.99	One project with 90-day access to Ontario Septic Designer; site information and authority approval remain the owner’s responsibility.

A professional proposal should state whether test holes, soil evaluation, survey, permit submission, authority fees, revisions, construction review and inspection attendance are included. Compare the broader septic system cost guide and use the septic cost calculator before setting the total project budget.

Construction drawings must control the field work

Establish a benchmark and elevations

The installer must know how the building sewer, tank, pump chamber, distribution and finished bed elevations relate to an identifiable site benchmark.
Show dimensions that can be laid out

Provide actual lengths, widths, offsets, pipe spacing, header locations, slopes and clearances.
Specify approved materials

Identify tank, pipe, stone, filter media, fill, geotextile, insulation, pumps, controls and treatment equipment where applicable.
Coordinate the cross-section

The construction layers and elevations shown in section must match the calculations and site plan.
Define inspection stages

Keep work visible and book the required inspections before covering tanks, piping, beds, pumps or construction layers. The Septic Inspection Ontario guide explains what should be documented before, during and after construction.
Control field changes

Obtain review and authority acceptance before moving, resizing or substituting important components.

Need the design, permit and construction handled together?

For projects in Simcoe County and Georgian Bay, send the property address, proposed building and known site information. We can review the design, excavation and installation route as one coordinated project.

Installation costs after the design is approved

Likely system	Ontario planning range	Typical conditions
Conventional gravity	$25,000–$40,000	Suitable soil, usable area, workable grade and straightforward access.
Raised, pressure or filter bed	$30,000–$50,000	Pumps, slower soil, imported fill, groundwater or constrained placement.
Advanced treatment or difficult site	$35,000–$65,000+	Waterfront conditions, bedrock, severe clearances, treatment equipment or difficult access.

Designing a replacement? Use the internal septic replacement planning guide for scope, budgeting and sequencing, and review failure signs, contractor questions and replacement options at Septic Replacement.

When Part 8 is not the right design framework

Ontario’s Building Code sewage-system rules generally apply to systems with a total design capacity of 10,000 litres per day or less that are located wholly within the property containing the building or buildings they serve.

Typical Part 8 project

A house, cottage, garden suite or small building with a qualifying on-site sewage system contained on the serving lot.

Environmental or engineered project

Larger, communal, commercial, institutional or cross-property sewage works may require environmental approval and professional engineering.

Multiple systems can be considered together. Do not divide a project into smaller pieces merely to avoid the 10,000-litre-per-day regulatory threshold.

Continue through the Ontario septic guides

Use these guides together. The design, permit, inspection, cost, construction and long-term operation decisions affect one another.

Ontario Septic Systems Hub Septic Permit Ontario Septic Inspection Ontario Septic System Cost Septic Cost Calculator Owner-Builder Septic Lot Septic Feasibility Buying a House With Septic Septic Replacement Planning Septic Maintenance How Septic Systems Work Garden Suite Septic Requirements Septic and Well Reality Check

Official Ontario references

Ontario’s Building Code Act establishes qualification requirements for permit-submission design work and sewage-system businesses. Ontario’s current regulatory guidance states that Building Code septic systems have a design capacity of up to 10,000 litres per day, while the building-permit guide requires a permit before installation, alteration, extension or repair.

Ontario Building Code Act Current Ontario Building Code Regulation Ontario Regulatory Roles Ontario Building-Permit Guide

Ontario septic design: frequently asked questions

Who can design a septic system in Ontario?

A person preparing septic design documents for permit submission must meet the applicable Ontario qualification and registration requirements unless a valid exemption applies. A registered property owner may be able to design a sewage system they own, but the owner should confirm that exemption with the local approval authority before relying on it.

What information is needed to design a septic system?

The designer needs the proposed building use, bedrooms, floor area, plumbing fixtures, daily design sewage flow, property survey or dimensions, well and water locations, grades, soil profile, T-time, groundwater, bedrock, access and other site constraints.

What drawings are normally included in a septic design package?

A complete package commonly includes a scaled site plan, system layout, dimensions and setbacks, tank and distribution details, elevations, a construction cross-section, soil and test-hole information, calculations, materials and applicable designer or owner-builder declarations.

How much does septic system design cost in Ontario?

A basic design and permit package often requires a planning allowance of approximately $2,000 to $8,000, depending on site investigation, complexity, professional involvement, revisions and local requirements. Difficult waterfront, engineered or advanced-treatment projects may cost more.

Can a septic system be designed before the house plans are finished?

A preliminary feasibility layout can be prepared early, but final sewage calculations and drawings should use the actual proposed building information. Changes to bedrooms, fixtures, floor area, foundation elevation or building location can force the septic design to be revised.

What is T-time in septic design?

T-time is the soil percolation value used with the daily design sewage flow and selected system type to determine loading and required bed dimensions. It must be based on an appropriate site and soil evaluation rather than assumed from neighbouring properties.

Can advanced treatment reduce the size of a septic bed?

Some approved treatment systems may allow a different dispersal design or smaller footprint, but they do not automatically eliminate every soil, setback, groundwater, bedrock, maintenance or approval constraint. The system must be selected and designed for the specific property.

Does the septic designer also obtain the permit?

Sometimes submission and authority communication are included, and sometimes the owner or contractor remains the applicant. The written proposal should identify who prepares the application, pays fees, answers review comments, revises drawings and books inspections.

Can the installer change the design in the field?

Do not build an unapproved change. The approval authority should be told before dimensions, location, elevations, materials, distribution, pumps or system type are changed. Revised drawings or calculations may be required.

When is Part 8 not the correct design framework?

Ontario’s Part 8 sewage-system rules generally apply to systems with a total design capacity of 10,000 litres per day or less that are located wholly within the property they serve. Larger, communal or cross-property sewage works may require environmental approval and professional engineering.

Important: General Ontario planning information only. The current Building Code, local application requirements, site-specific design and written direction from the approval authority govern each project.
